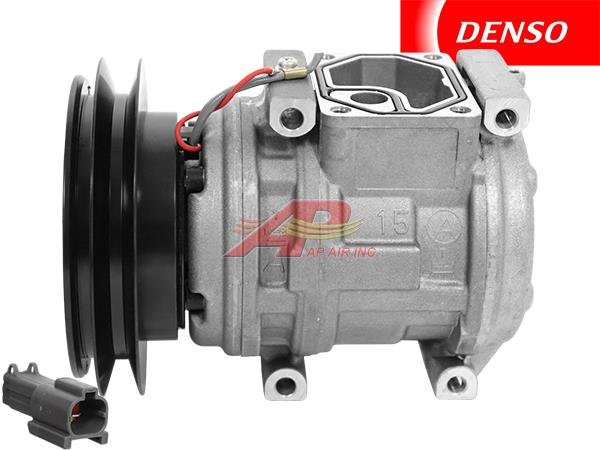

Item # 503-1223 - OE Denso Compressor 10PA15C - 152mm, 1 Groove Clutch, 24V

Can use Alternative Denso Compressor - SEE #503-1223  $357.14

Must use Original Manifold
Item Information
OEM Numbers
ND4472000246, 20Y-979-3111, 14X-Z11-8580, 14X-911-17400
Specifications
COMPRESSOR TYPE	10PA15C
HEAD TYPE	N/A
OIL TYPE	ND8 Pag Oil
CLUTCH DIAMETER	152mm, 6"
VOLTAGE	24
GROOVES	1
BELT WIDTH	B, 5/8"
COIL POSITION	12 o'clock
OIL QUANTITY	See Manufacture
GAUGE LINE	2.850", 72.39mm
