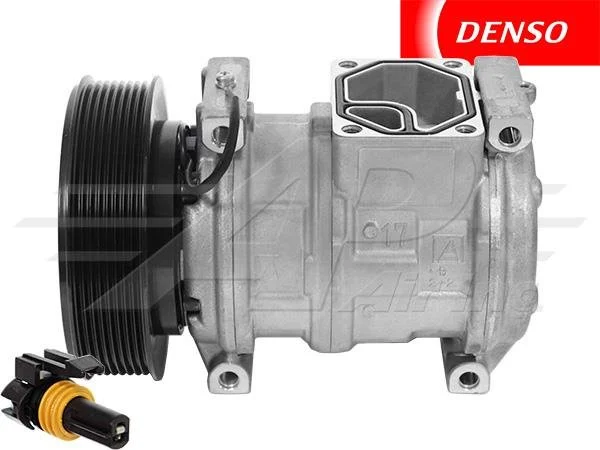

Item # 503-140 - OE Denso Compressor 10PA17C - 146mm, 8 Groove Clutch, 12V

Item Information
Must Use Original Manifold

Can Use Alternative Denso - 503-1403
Can Use Original Denso with Manifold 503-141

OEM Numbers
RE46609, RE69716, AH169875
Specifications
COMPRESSOR TYPE	10PA17C
HEAD TYPE	N/A
OIL TYPE	ND8 Pag Oil
CLUTCH DIAMETER	5.748", 146mm
VOLTAGE	12
GROOVES	8
BELT WIDTH	Serpentine
OIL QUANTITY	7.77 oz, 230cc
GAUGE LINE	50.07mm 1.97"C, 63.5mm 2.5"F
